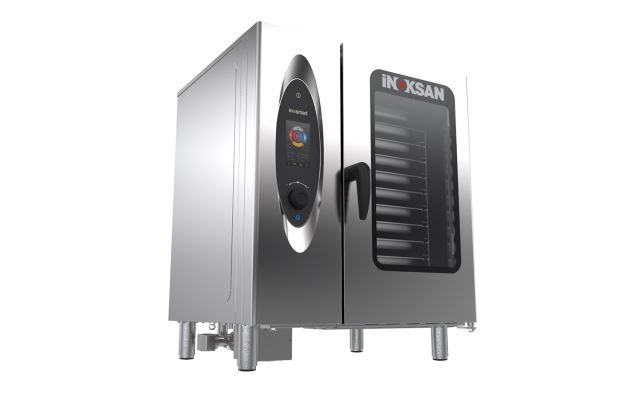

![FBG 10T - INOSMART STEAM PANEL OVEN]()
|
Steam Gas Power
|
15
|
kW
|
|
Hot Air Gas Power
|
15
|
kW
|
|
Fan Motor Power
|
0,85
|
kW
|
|
Electrical Inlet
|
230 V AC 1N+PE
|
V
|
|
Frequency
|
50
|
Hz
|
|
Max. Electrical Power
|
1,1
|
kW
|
|
Max. Gas Power
|
15
|
kW
|
|
Gas Consumption (NG)(G20)
|
1,587
|
mᶟ/h
|
|
Gas Consumption (LNG)(G30/G31)
|
1,183
|
Kg/h
|
|
Nominal Gas Pressure (NG)(G20)
|
20
|
mbar
|
|
Nominal Gas Pressure (LPG)(G30/G31)
|
30/37
|
mbar
|
|
Cooking Capacity
|
GN 1/1*10
|
piece
|
|
Capacity
|
10 GN 1/1
|
|
|
Distance of Shelves
|
65
|
mm
|
|
Gas Inlet
|
¾
|
INC
|
|
Water Pressure
|
2-4
|
bar
|
|
Water Inlet
|
¾
|
INC
|
|
Diemensions
|
925x793x1190
|
WxDxH
|
|
Cooking Chamber Volumes
|
0,22
|
mᶟ
|
|
Net Weight
|
210
|
KG
|
General features
|
| Width |
92,5 cm |
| Depth |
79,3 cm |
| Height |
119 cm |
| Device capacity |
10 GN 1/1 |
| Gross weight |
210 kg |
| Net weight |
210 kg |
Functional Features
|
| Water Inlet Temperature |
3/4 inç |
| Water Pressure |
2-4 bar |
| Cooking capacity |
GN 1/1*10 |
| Steam Power |
15 kW |
| Useful Internal Volume |
0,22 m³ |
Technicial Specifications
|
| Electric Input |
230 V AC 1N+PE |
| Gas Inlet |
3/4 inç |
| Total power |
16,1 kW |
| Max Throttle Power |
15 kW |
| Max. Electric power |
1,1 kW |
| Frequency |
50 Hz |
| hot air gas power |
15 kW |
| Fan Motor Power |
0,85 kW |
| Gas Consumption (NG)(G20) |
1,587 m³/h |
| Gas Consumption (LNG)(G30/G31) |
1,183 Kg/h |
| Nominal Gas Pressure (NG)(G20) |
20 mbar |
| Nominal Gas Pressure (LPG)(G30/G31) |
30/37 mbar |
Accessory
|
| GN / Tray capacity |
GN 1/1*10 |
